This is an education resource only. Ordering of all procedure codes on this website are subject to the Canberra Health Services guidelines for imaging orders.
INDICATIONS (1-4)
-
Ischaemic stroke to diagnose occlusion and thrombosis / assess change and monitor known cases
-
Carotid artery dissection
-
Vertebral artery dissection
-
Vascular malformation within the head and neck
-
Transient ischaemic attack, used to evaluate carotid artery stenosis as potential causation
-
Subarachnoid haemorrhage to assess aneurysmal origin
-
Cerebral parenchymal haemorrhage, to assess for the presence of a vascular malformation or ongoing bleeding (spot sign)
-
Follow up of known dissection & aneurysms within cerebral and neck vasculature
PATHOLOGY DEMONSTRATED (5)
-
Occlusion and thrombosis within the carotid and vertebral arteries
-
Carotid artery dissection
-
Vertebral artery dissection
-
Arteriovenous malformation within the head and neck
-
Carotid artery stenosis
-
Aneurysms within cerebral and neck vasculature
-
Acute haemorrhage (spot sign)
PATIENT PREPARATION
-
Patient able to lie still for ten minutes
-
Not claustrophobic (sedation may be given)
-
Cognitively capable of following basic instructions
-
Metal artefacts removed from the region of interest
-
No respiratory distress when lying supine
-
Not allergic to Iodine based Contrast
-
No known kidney disease (EGFR below 30 as per RANZCR), however, acute setting consultant may sign to continue with poor renal function
-
No hyperthyroidism, may induce thyroid storm
-
Patient to have 18G cannula in anterior cubital fossa to allow a 7ml/s flow rate(20G cannula acceptable if flushing to 5ml/s)
-
Preferably patient fasted for 4 hours
ANATOMY INCLUDED

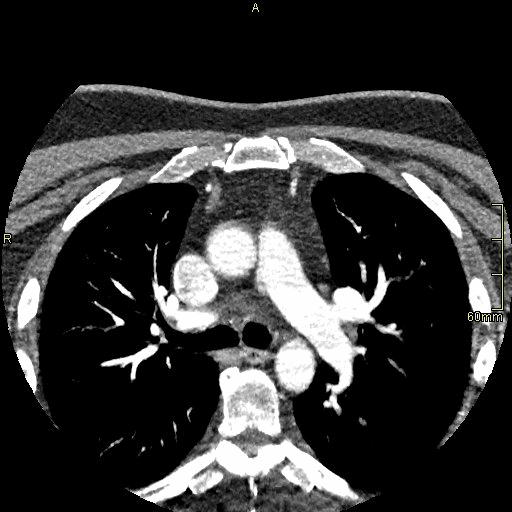

Angiography Arch to COW (Axial)

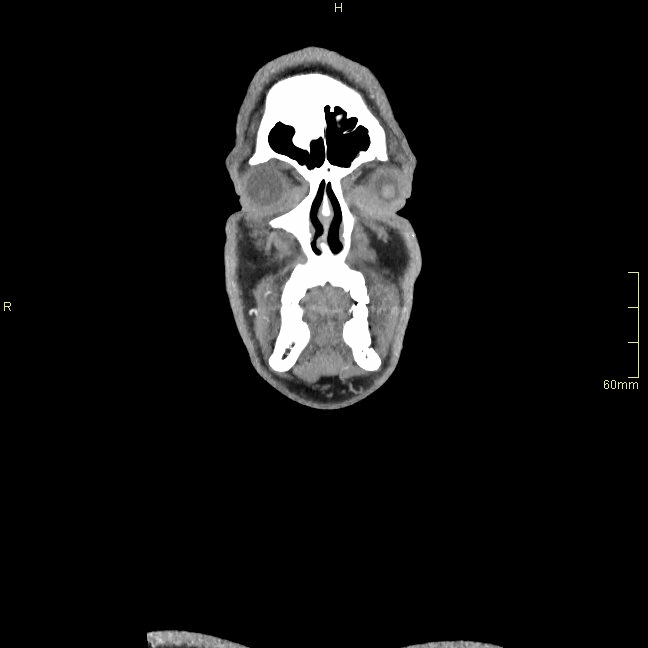

Angiography Arch to COW (Coronal)

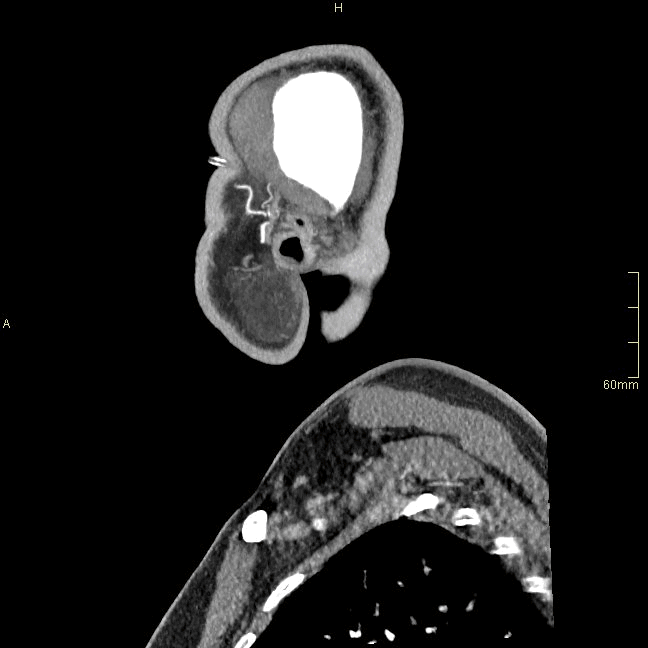

Angiography Arch to COW (Sagittal)
REFERENCES
-
Radiopaedia. CT Head. [Internet]. 2010 [updated 01 Dec 2021, cited 23 Nov 2021]. Available from https://radiopaedia.org/articles/ct-head
-
American College of Radiology (ACR). Appropriateness Criteria. [Internet]. 2022 [Updated 2021, cited 23 Nov 2021]. Available from https://www.acr.org/Clinical-Resources/ACR-Appropriateness-Criteria
-
Radiopaedia. Brain tumours. [Internet]. 2008. [updated 18 Dec 2019, accessed 23 Nov 21]. Available from https://radiopaedia.org/articles/brain-tumours
-
Radiopaedia. Skull Fractures. [Internet]. 2017 [updated 19 Sep 2021, cited 23 Nov 2021]. Available from https://radiopaedia.org/articles/skull-fractures
-
Eisenberg RL., Johnson NM. Comprehensive Radiographic Pathology. 5th Edition. Elsevier Mosby, 2012.
