This is an education resource only. Ordering of all procedure codes on this website are subject to the Canberra Health Services guidelines for imaging orders.
INDICATIONS (1-4)
-
Thunderclap headache with possible associated nausea, vomiting, photophobia & meningism.
-
Subarachnoid haemorrhage to assess aneurysmal origin
-
Vascular malformation within the brain
-
Transient ischaemic attack
-
Cerebral parenchymal haemorrhage, to assess for the presence of a vascular malformation or ongoing bleeding (spot sign)
-
Known Aneurysm within Circle of Willis
PATHOLOGY DEMONSTRATED (5)
-
Intracranial haemorrhage (ICH), subdural haemorrhage (SDH), extradural haemorrhage, subarachnoid haemorrhage (SAH)
-
Brain contusion
-
Ischaemic infarct (hyperdense artery sign), established infarct, subacute infarct
-
Brain mass lesions (best visualised on a post contrast brain not angio)
-
Mass effect due to associated pathology e.g. mass, ICH
-
Skull # or lesion
-
Brain inflammation secondary to infection, abscess (often a post contrast scan is indicated also)
-
Cerebral oedema
-
Cerebral atrophy (age related and pathological)
PATIENT PREPARATION
-
Patient able to lie still for ten minutes
-
Not claustrophobic (sedation may be given)
-
Cognitively capable of following basic instructions
-
Metal artefacts removed from the region of interest
-
No respiratory distress when lying supine
-
Not allergic to Iodine based Contrast
-
No known kidney disease (EGFR below 30 as per RANZCR), however, acute setting consultant may sign to continue with poor renal function
-
No hyperthyroidism, may induce thyroid storm
-
Patient to have 18G cannula in anterior cubital fossa to allow a 7ml/s flow rate(20G cannula acceptable if flushing to 5ml/s)
-
Preferably patient fasted for 4 hours
ANATOMY INCLUDED
CT Brain - Non Contrast (Axial)
CT COW Angio (Axial)
CT Brain - Non Contrast (Coronal)

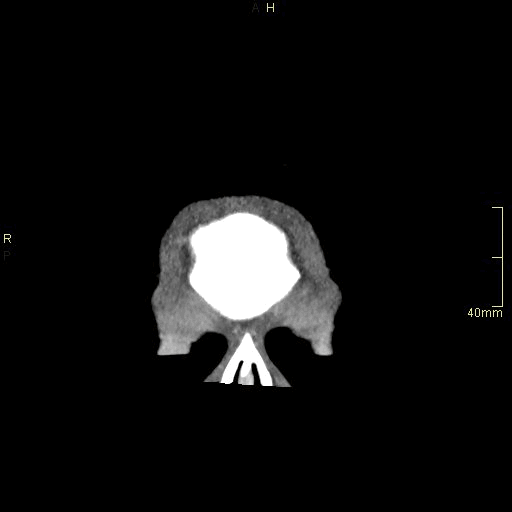

CT COW Angio (Coronal)
CT Brain - Non Contrast (Sagittal)

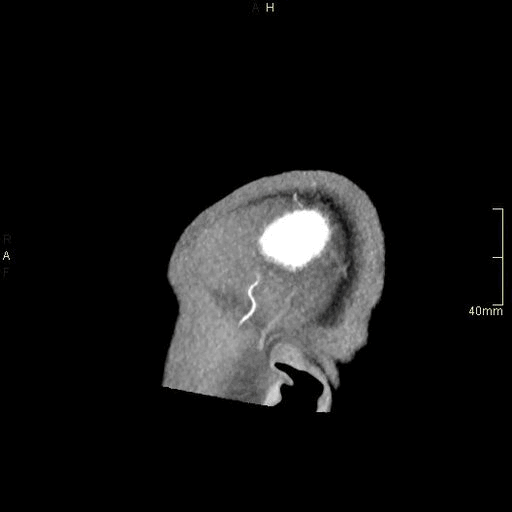

CT COW Angio (Sagittal)
REFERENCES
-
Radiopaedia. CT Head. [Internet]. 2010 [updated 01 Dec 2021, cited 23 Nov 2021]. Available from https://radiopaedia.org/articles/ct-head
-
American College of Radiology (ACR). Appropriateness Criteria. [Internet]. 2022 [Updated 2021, cited 23 Nov 2021]. Available from https://www.acr.org/Clinical-Resources/ACR-Appropriateness-Criteria
-
Radiopaedia. Brain tumours. [Internet]. 2008. [updated 18 Dec 2019, accessed 23 Nov 21]. Available from https://radiopaedia.org/articles/brain-tumours
-
Radiopaedia. CT Angiography of the Cerebral Arteries (technique). [Internet]. 2018. [Updated 01 Jul 2021, cited 29/12/2021]. Available from https://radiopaedia.org/articles/ct-angiography-of-the-cerebral-arteries-technique
-
Eisenberg RL., Johnson NM. Comprehensive Radiographic Pathology. 5th Edition. Elsevier Mosby, 2012.
