This is an education resource only. Ordering of all procedure codes on this website are subject to the Canberra Health Services guidelines for imaging orders.
CT ORBITS CONTRAST
INDICATIONS (1-4)
-
Orbital Infection suspected
-
Periorbital Infection suspected
-
Diplopia, initial exam
-
Orbital asymmetry:
- Enophthalmos, nontraumatic
- Exophthalmos, nontraumatic -
Ophthalmoplegia
-
Orbital asymmetry, nontraumatic
-
Orbital cellulitis suspected
-
Scleritis suspected
-
Uveitis suspected
-
Visual loss:
- Intraocular mass
- Optic nerve symptoms
- Pre-chiasm symptoms
PATIENT PREPARATION
-
Patient able to lie still for ten minutes
-
Not claustrophobic (sedation may be given)
-
Cognitively capable of following basic instructions
-
Metal artefacts removed from the region of interest, including bra’s
-
No respiratory distress when lying supine
-
Not allergic to Iodine based Contrast
-
No known kidney disease (eGFR below 30 as per RANZCR), however, acute setting consultant may sign to continue with poor renal function
-
No hyperthyroidism, may induce thyroid storm
-
Patient to have 20G cannula in anterior cubital fossa.
-
Preferably patient fasted for 4 hours
ANATOMY INCLUDED

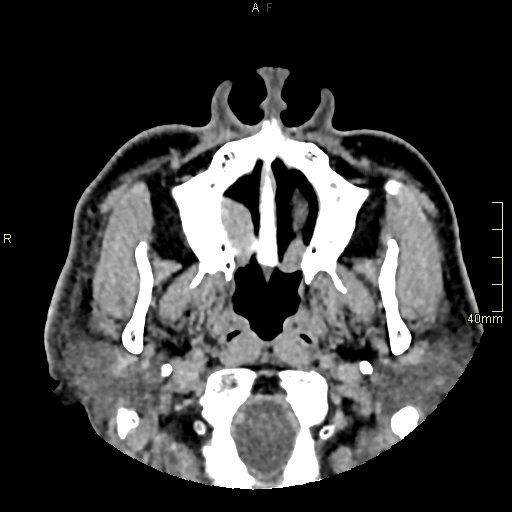

CT Orbits Contrast- Soft Tissue window (axial)

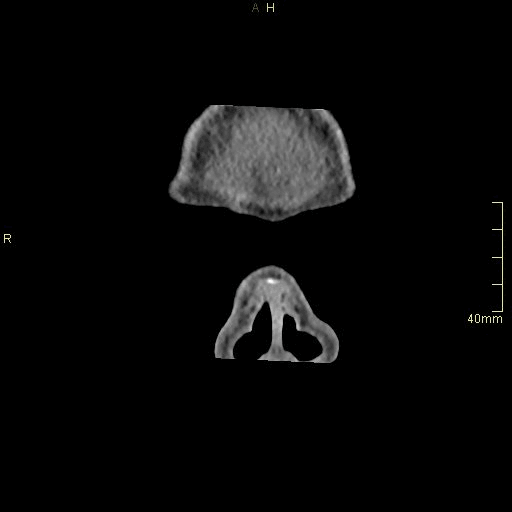

CT Orbits Contrast- Soft Tissue window (coronal)

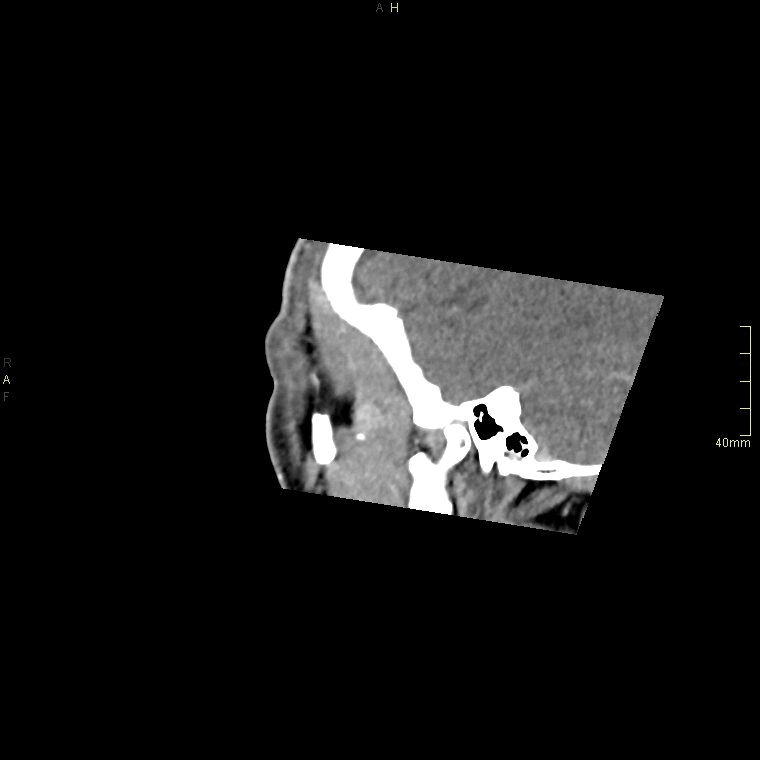

CT Orbits Contrast- Soft Tissue window (sagittal)

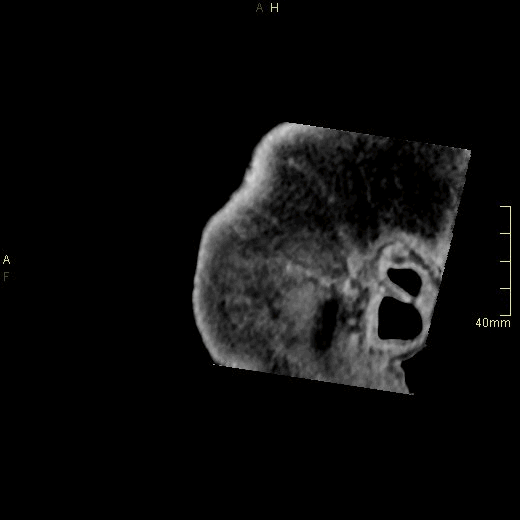

CT Orbits Contrast- Soft Tissue window (Right Orbit Oblique)
REFERENCES
​​
-
Radiopaedia. CT Paranasal Sinuses (protocol). [Internet]. 2010 [updated 23 March 2023, cited 7 April 2024]. Available from https://radiopaedia.org/articles/ct-paranasal-sinus-protocol-1?lang=gb
-
Som, P. M., & Curtin, H. D. (2011). Head and neck imaging. Mosby Elsevier.
-
ACR–ASNR–SPR Practice parameter for the performance of computed tomography (CT) of the extracranial head and neck. American College of Radiology. (2023, August). https://www.acr.org/-/media/ACR/Files/Practice-Parameters/CT-Head-Neck.pdf
-
American College of Radiology (ACR). Appropriateness Criteria. [Internet]. 2022 [Updated 2023, Cited 20 Jan 2024]. Available from https://www.acr.org/Clinical-Resources/ACR-Appropriateness-Criteria
